VOLVO DIAGRAM for CLUTCH RELEASE BEARING

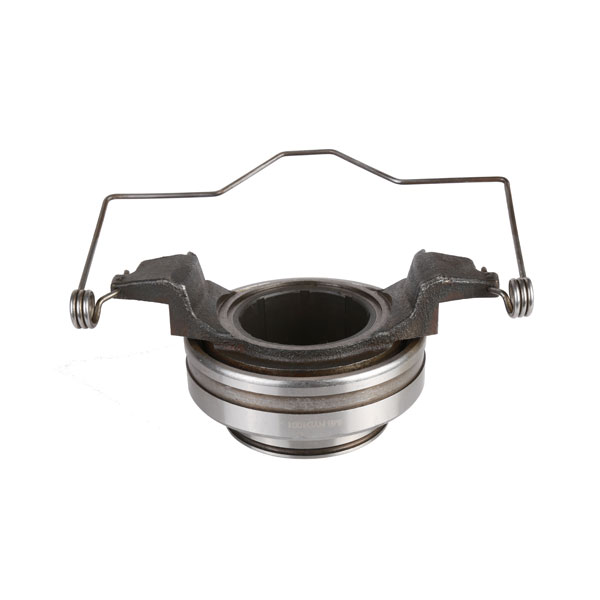

IMB No: 500.010(1001)

VOLVO CLUTCH BEARING WITH MOUNTING KIT

  • VOLVO NO: 3192219 , 1672945 , 20569159 , 3192218 , 20569151 , 3192222 , 1655843 , 1668921 , 1669832 , 1672944 , 20569157
  • SACHS NO: 3151000154 , 3151167101 , 3511167232 , 3151167432 , 3151276931 , 3100002460 , 3100026431 , 3100002114 , 2100002247 , 3100026432
d
66.80mm
D
125.8mm
B
74mm

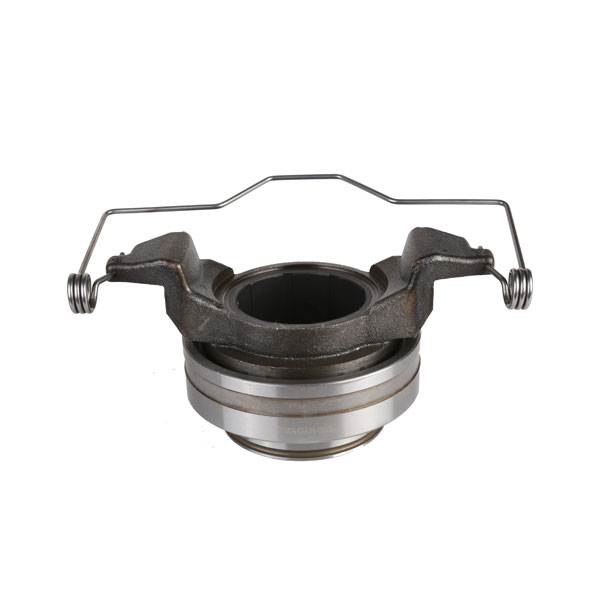

IMB No: 500.011(1002)

VOLVO CLUTCH BEARING WITH MOUNTING KIT

The Volvo Truck Bearing is used for flawless component rotation, reducing the friction between moving parts. Best grade material and sophisticated techniques are being employed in developing these bearings to ensure high load enduring capacity. The company is committed to designing Volvo Truck Clutch Bearing that is in accordance with the greatest quality grade. So as offer the accurate bearings solution, it creates the sample of the clutch bearings which determine the design and quality of the final products.

  • VOLVO NO: 3192216 , 20569153 , 3100002459 , 3100026434 , 31922217 , 1672847 , 20510801 , 20569174 , 3192223 , 8112159 , 1655732 , 1655825 , 1667258 , 1668923 , 1669833 , 167246 , 20571928
  • SACHS NO: 3100002118 , 3100002218 , 3100002220 , 3100026433 , 3151164201 , 3151164203 , 31511643333 , 3151000163 , 3151276031
d
66.80mm
D
126.6mm
B
86.5mm

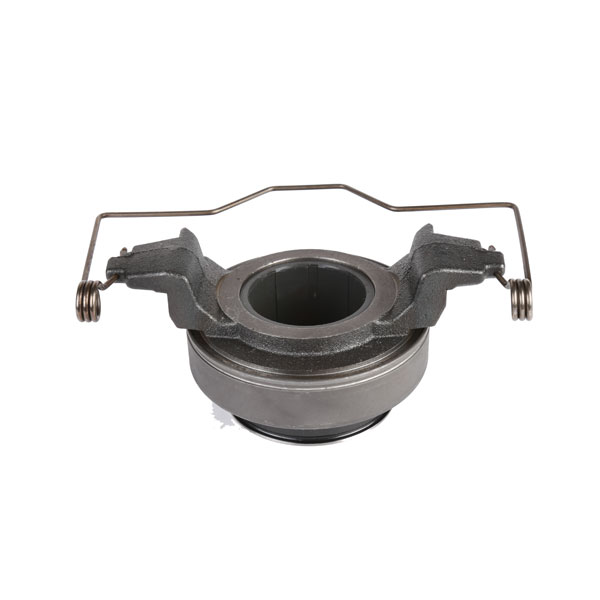

IMB No: 500.012

VOLVO CLUTCH BEARING WITH MOUNTING KIT

  • VOLVO NO: 1668930 , 1668938 , 1672948 , 3192224 , 20366912
  • SACHS NO: 310002550
  • USED IN: B6-12 / B-7R / B-7RLE / B-10B / B-10BLE
d
58.5mm
D
126.6mm
B
77mm
